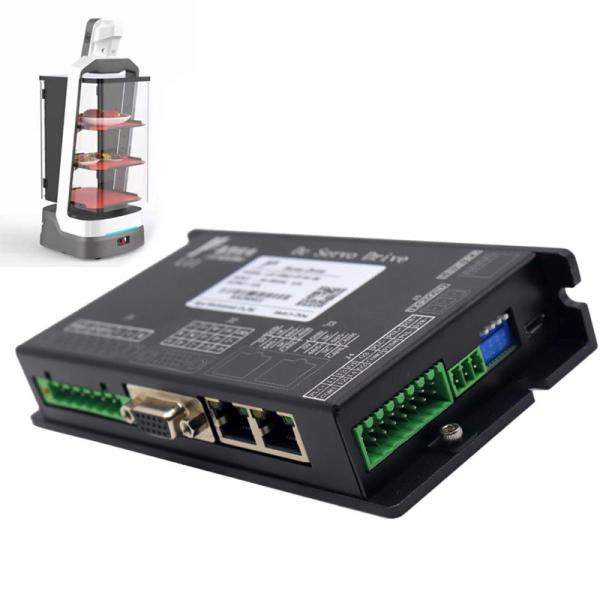

Medical Instrument 24V DC Servo Drive With Absolute Encoder

  • 1
  • 2
  • 3

Brand Name : Jiayu

Model Number : L11-10612-AT-CO-00(CANopen/RS232,ABS INC)

Certification : CE

Place of Origin : China

MOQ : 2pcs

Price : Negotiable

Payment Terms : TT

Supply Ability : 500pcs per month

Delivery Time : 10-15days after payment

Packaging Details : package

Input voltage : 24 ~ 80 VDC

Continuous/peak current : 12A / 36A

Encoder feedback : absolute

Communication interface : RS232/RS485/CAN

Digital input/output : 4 in 2 out, optocoupling isolation

special interface : special interface

Control mode : Location mode/ internal location

Working temperature : -25℃ ~ 70℃

Contact Now

DC Servo Drive Medical Instruments 24V DC Servo Drive With Absolute Encoder
Features of DC Servo Drive
1. Small air gap, small positioning torque, low noise, low vibration, low torque ripple.
2. The motor slot full rate is high, the winding end is optimized, the copper loss is minimized, the magnetic load is high, the iron loss is minimized, the volume is small, the weight is light, the heat is low, and the efficiency is high.
3. Servo drive motor which effectively controls the positioning torque, and the motor runs extremely smoothly at low speed.
4. Support position control, speed control, torque control and single axis control mode;
5. RS485/CANopen bus communication,can beused for multi-axis equipment control;
Specificition of DC Servo Drive
Model Number
L11-1-06-12-ST-CO-00
Input voltage
24 ~ 80 VDC
Continuous/peak current
12A / 36A
Encoder feedback
Incremental
Communication interface
RS232/RS485/CAN
Digital input/output
4 in 2 out, optocoupling isolation
special interface
special interface
Computer software
Support
Control mode
Location mode/ internal location
Product name
SERVO DRIVE
Working temperature
-25℃ ~ 70℃

Matching function of DC Servo Drive

► Modbus serial communication protocol(RS232/RS485);

► The upper computer software with oscilloscope function canmodify parameters and monitor debugging;

► Provide serial port burning download tools,support online remote serial port up grade;

Company profile

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights
Since its establishment, our company has won the recognition and support of our customers by virtue of "excellent quality, honest service". Now the factory covers an area of more than 2,000 square meters and has passed the ISO9001:2015 quality management system certification. In this area, tens of thousands of products developed and manufactured by Jiayu Mechatronic Co., Ltd. have been shipped on supporting customers' complete equipment, which are spread all over the country, as well as overseas regions such as Europe, Middle East, and Southeast Asia. The field has contributed a lot.
In the future, the company will focus more on the improvement of product performance and quality.
Application of DC Servo Drive

Medical Instrument 24V DC Servo Drive With Absolute Encoder

FAQ

1. Are you Factory or Trader?
we are factory,and have professional R.&D team as introduced in company information.
2. How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.
3. What can you buy from us?
Access servo drive,speed gate drive,turnstile controller,swing gate drive,barrier gate controller,servo motor,mechanism.
4. Why should you buy from us not from other suppliers?
We are with multiple invention patents and software copyrights such as servo drive and channel gate controltechnology.
Committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automaticgate control movement.
5. What is your after-sale service?
Free maintance within 12 months guarantee,lifetime consultant,Professional solutions in installation and maintance.
6. Do you get the relevant certifications?
All products are made according to ISO90o1,CE requirements.
7. How about the delivery?
- Sample:3-5days
- Bulk order:15-30 days
